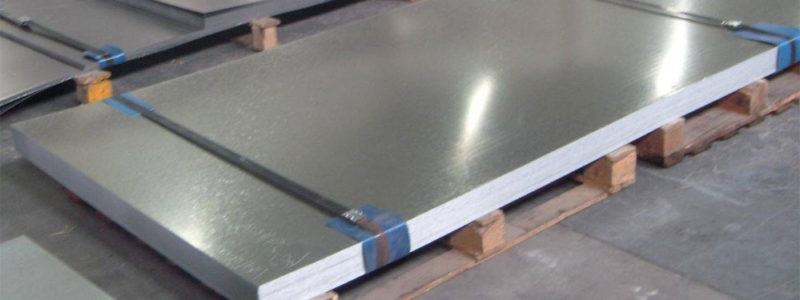

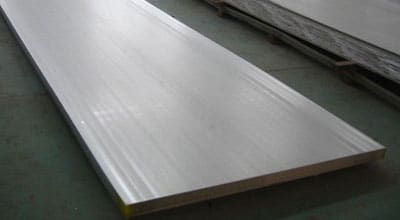

Alloy Steel P5 Plates and Sheets
Introduction

Alloy Steel P5 Plates, Alloy Steel P5 Fabricated Plates, ASTM A387 P5 Alloy Polished Plates Manufacturer, Exporter & Supplier.
Alloy Steel P5 Sheets, Seamless Sheets, ASME A387 Alloy P5 Shim Sheets etc Supplier & Manufacturer in India.
ASME SA387 Alloy Steel P5 Hot Rolled Sheets, Alloy Steel Plates Stockist, ASTM A387 Alloy P5 Cold Rolled Sheets Supplier & Exporter in India.
Chemical Composition Of Alloy Steel P5 plates and Alloy Steel P5 sheets
|
Grade |
C |
Mn |
P |
S |
Si |
Cr |
Mo |
|
P5 |
0.15max |
0.30-0.60 |
0.025 |
0.025 |
0.50 max |
4.00-6.00 |
0.45-0.65 |
|
V 0.18-0.25 |
N 0.03-0.07 |
Ni 0.40 max |
Al 0.02 max |
Cb 0.06-0.10 |
Ti 0.01 max |
Zr 0.01 max |
Mechanical Properties Of Alloy Steel P5 plates and Alloy Steel P5 sheets
|
Properties |
Data |
|
Tensile strength, min, (MPa) |
415 Mpa |
|
Yield strength, min, (MPa) |
205 Mpa |
|
Elongation, min, (%), L/T |
30/20 |
Equivalent Standard For Alloy Steel P5 plates and Alloy Steel P5 sheets
|
GRADE |
UNS |
EN |
GOST |
WNR |
|
P5/T5 |
K41545 |
X12CrMo5 |
15KH5M |
1.4903 |
Alloy Steel P5 plates and Alloy Steel P5 sheets Specifications:
Types: Alloy Steel Plates & Sheets / EFW / Fabricated / Alloy Steel Welded Plates & Sheets
Form: Foils, Shim Sheet, Rolls, Perforated Sheet, Chequered Plate.
Schedule: SCH20, SCH30, SCH40, STD, SCH80, XS, SCH60, SCH80, SCH120, SCH140, SCH160, XXS
Length: Single Random, Double Random & Required Length
Specifications : ASTM A335, A213 & A691 / ASME SA335, A213, A691
Standard: ASTM, ASME & API
Tubing Size: 1 / 2” OD up to 5” OD, customs diameters also available
Pipes Size: 1 / 8NB TO 36NB
Thickness: 0.3mm – 50 mm
Outer Diameter: 6-2500mm; WT:1-200mm
End: Plain End, Beveled End, Treaded
Grades: ASTM A335 Gr. P5, P9, P11, P12, P21, P22 & P91, ASTM A213 – T5, T9, T11, T12, T22, T91, ASTM A691.
Types Of Alloy Steel P5 plates and Alloy Steel P5 sheets
|
Alloy Steel P5 Polished Plates |
Alloy Steel P5 Hot Rolled Plates |
|
P5 Cold Rolled Plates |
Alloy Steel P5 Coils |
|
Alloy P5 Round Strips |
T5 Foils |
|
Alloy Steel P5 Shim Sheet |
Alloy Steel T5 Circle |
|
Alloy Steel P5 Polished Plates |
Alloy Steel P5 Hot Rolled Plates |
